NOVA Wheel Flexible Resin Diamond Tool/Grinding Disk

Short Description:

Product Detail

Product Tags

Product introduction

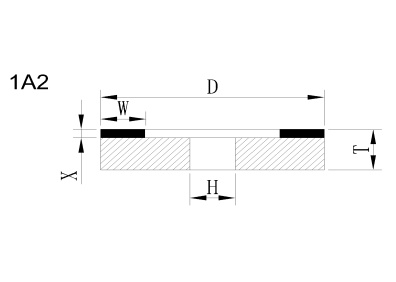

Resin diamond cast disc
OD(outer diameter)(mm)	Thickness(mm)	Sand width(mm)	Working layer thickness(mm)	Hmesoporous(mm)	remarks
150	10	50	3	12.7
150	10	0	3	12.7	Full sand
200	12	70	3	12.7
200	12	83	3	12.7
200	12	0	3	12.7	Full sand

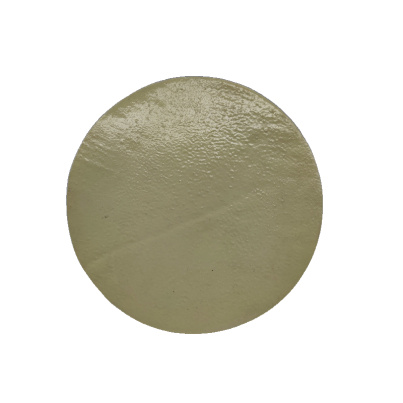

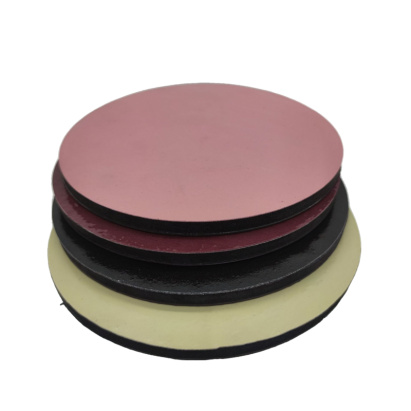

Flexible resin diamond disk
OD(outer diameter)(nm)	Thickness(nm)	Hmesoporous(nm)
150	10	25.4
200	10	25.4

Diamond grinding head diameter is generally between 3mm-150mm, commonly used specifications are 3mm, 6mm, 8mm, 10mm, 12mm, etc. The shape of grinding head is spherical, cylindrical, conical, flat and so on. The particle size is generally between 60#-3000#, with different sizes suitable for different machining and grinding scenarios.

Size: 60 # / # 140 / # 280 / # 600 / # 1200 / # 3000 / # 5000 / # 8000 / # 14000 / # 50000

2. Production of raw materials

Imported resin is selected as binder, and imported diamond with high sharpness, high strength and high wear resistance is selected as abrasive.

3. Process

The resin powder is mixed evenly with diamond particles and coated to the surface with a base.

4. Product features

The outer operating layer is flexible and polished in a curved manner. Items that are not level have the property of not scratching items and providing seamless and efficient wear. Economical alternative to similar products imported from abroad.

5. Different from similar products on the market

1. High grinding efficiency and long service life;
2. High machining accuracy and small workpiece surface roughness;
3. Suitable for processing hard and brittle materials;
4. Less dust, less environmental pollution

6. Applied range

It is mainly used for the unique processing of hard and brittle substances, such as jade, crystal, glass, artificial crystal, ceramics, and the process of grinding and polishing from coarse to fine grain using grinding wheels.

1. It can be used for grinding precious stones, jade and other precious ornaments, grinding will not change the present situation of the surface of the treasure jade;
2. It can be used for grinding and polishing all kinds of Iols, glass crafts and other surfaces;
3. Can be used for ceramic crafts, metal pendant, wood products and other small crafts surface grinding processing;
4. Can be used for glass lens grinding and polishing;
5. Can be used for bracelet processing;
6. Can be used for metal material processing.
